Ring Lock – Vertical Diagonals

Home » Scaffold » System Scaffold » Ring Lock » Ring Lock – Vertical Diagonals

Ring Lock – Vertical Diagonals

  • Featuring the connecting portion of the rosette joint design
  • Stabilizes the verticals and Ring Lock scaffolding
SKU: N/A Categories: , ,

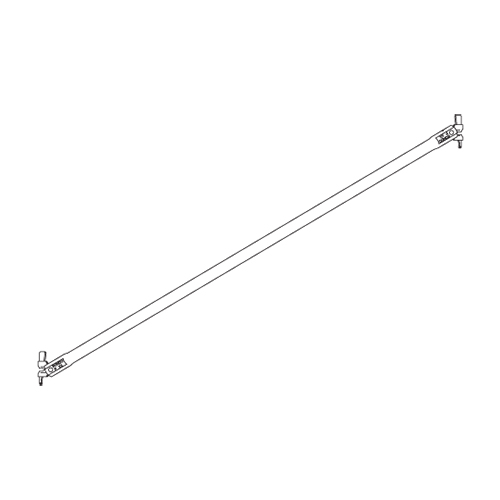

These Ring Lock Vertical Diagonal posts are composed of a single rod of steel with the connecting portion of the rosette design and a hinge on either side for height adjustments. Our ring lock vertical diagonal posts are made in the USA with the highest quality components including ID coated tubing for extended life and powder coat finish for durability that exceed OSHA regulations. The posts we manufacture conform to the most rigid tolerance tests in the industry, which is what makes our posts the most used and recognized on the market today.

Ring lock is a modular access scaffolding system for industrial and construction applications. Engineered for versatility, durability and strength, BilJax Ring Lock Scaffold is a universal application system with professional performance. Ideal for use on structures with complicated shapes, plans and elevations, it’s the perfect choice when angular flexibility is important. Our Ring Lock Scaffold is cost effective and outperforms the competition. At the heart of the Ring Lock Scaffold is our rosette joint design. This unique plate has eight openings that allow up to eight horizontals and diagonals to be connected to each rosette. As a result, Ring Lock scaffold offers incredible adaptability to meet the requirements of varied building elevations and plans. The Ring Lock rosette joint is engineered with eight holes so that members connect quickly and easily at “automatic angles.” When Ring Lock scaffold is being used on an uncomplicated, “normal” structure, scaffold horizontals connect to the rosette at 90o angles to ensure intersecting right angles. However, the joint also has four elongated holes that allow members to be connected at any angle between 30o and 60o. That means Ring Lock scaffold offers virtually unlimited angular adjustment and design, making it ideal for triangular, polygonal, and curved scaffold designs. However, the advantages of this special rosette joint don’t end there. Here are other ways the BilJax system outperforms other conventional designs: Using finite element analysis (FEA), the size and material strength of the modular steel rosette have been optimized for the applied loads. Find out how Ring Lock Scaffold can take your productivity to new heights.

Additional information

Part Number
C256-05-111520 Sys-Generic-Vertical Diagonal-1.15Mx 2.0
C256-05-302420 Sys-generic-vertdiag 2ftx2.0m
C256-05-303620 Sys-GenericVert Diagonal-3ft x 2.0M
C256-05-304820 Sys-Generic-Vertical Diagonal-4ft x 2.0M
C256-05-306020 Sys-Generic-Vert Diag 5ft x 2.0m
C256-05-308420 Sys-Generic-Vertical Diagonal-7ft x 2.0M
C256-05-309620 Sys-GenericVert Diagonal-8ft x 2.0M
C256-05-312020 Sys-GenericVert Diagonal-10ft x 2.0M
C256-11-102005 Vertical Diagonal 2.0M x 0.5M
C256-11-102010 Vertical Diagonal 2.0M x 1.0M
C256-11-103005 Vertical Diagonal 3.0M x 0.5M
C256-11-103010 Vertical Diagonal 3.0M x 1.0M
