Ring Lock – Side Bracket

  • Featuring the connecting portion of the rosette joint design
SKU: N/A Categories: , ,
product-banner

Description

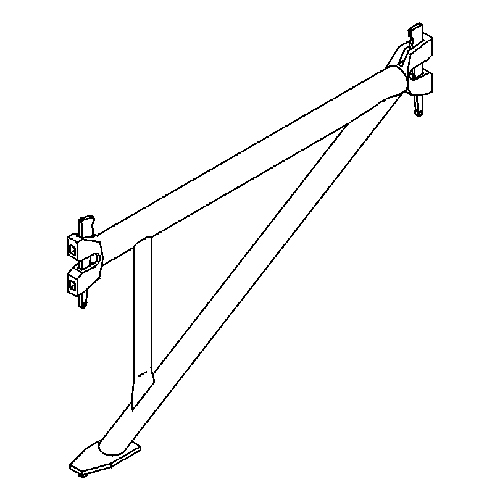

These Ring Lock Side Brackets are composed of several rods of steel in a stabilized triangle with the connecting portion of the rosette design. This adds adjustable work height and additional work space that is easy to set up and take down. Our ring lock side brackets are made in the USA with the highest quality components including ID coated tubing for extended life and powder coat finish for durability that exceed OSHA regulations. The side brackets we manufacture conform to the most rigid tolerance tests in the industry, which is what makes our side brackets the most used and recognized on the market today.

Ring lock is a modular access scaffolding system for industrial and construction applications. Engineered for versatility, durability and strength, BilJax Ring Lock Scaffold is a universal application system with professional performance. Ideal for use on structures with complicated shapes, plans and elevations, it’s the perfect choice when angular flexibility is important. Our Ring Lock Scaffold is cost effective and outperforms the competition. At the heart of the Ring Lock Scaffold is our rosette joint design. This unique plate has eight openings that allow up to eight horizontals and diagonals to be connected to each rosette. As a result, Ring Lock scaffold offers incredible adaptability to meet the requirements of varied building elevations and plans. The Ring Lock rosette joint is engineered with eight holes so that members connect quickly and easily at “automatic angles.” When Ring Lock scaffold is being used on an uncomplicated, “normal” structure, scaffold horizontals connect to the rosette at 90o angles to ensure intersecting right angles. However, the joint also has four elongated holes that allow members to be connected at any angle between 30o and 60o. That means Ring Lock scaffold offers virtually unlimited angular adjustment and design, making it ideal for triangular, polygonal, and curved scaffold designs. However, the advantages of this special rosette joint don’t end there. Here are other ways the BilJax system outperforms other conventional designs: Using finite element analysis (FEA), the size and material strength of the modular steel rosette have been optimized for the applied loads. Find out how Ring Lock Scaffold can take your productivity to new heights.

Additional information

Part Number
Description
C256-03-12 Side Bracket 12"
C256-03-24 Side Bracket 24"
C256-03-34 Side Bracket 34"
