Bil-Jax offers a heavy duty stair scaffolding system for worker access to buildings, bridges, observation towers, or renovation done inside or outside. The stairs can also be used for access in a scaffold set-up.
Stair Tower Packages include frames, braces, leveling jacks, stair sections with handrails, stair rests, full top platform and top panel guard.
Bil-Jax offers a heavy duty stair tower for worker access to buildings, bridges, observation towers, or renovation done inside or outside. The stairs can also be used for access in a scaffold set-up. Stair Tower Packages include frames, braces, leveling jacks, stair sections with handrails, stair rests, full top platform and top panel guard.
For Applications Up to 100′ Each tower package contains a top section with guard railing and a bottom section, totaling 13’ in height. To figure center units needed, subtract 13’ from the total height of the tower and divide the balance by 6.5.
Note: Tie-ins not included in Stair Tower Packages. See our Scaffold Catalog for more details on Scaffold Tie Braces.

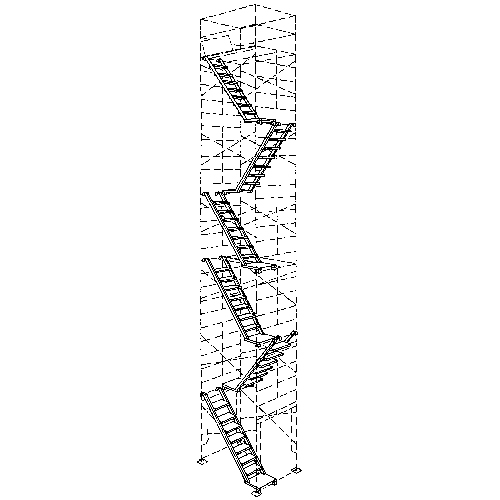

Note: Handrail and Diagonal Bracing must be used in Stair Towers, Handrails and some bracing have been omitted in this illustration for clarity. Safety requirements call for an intermediate catwalk platform every 3rd section (20’) of stair tower height.
|
Part Number
|
Description | Tube Size | Capacity |
Weight
|
|---|---|---|---|---|
| 0042-019 | Stair Platform Rest | 5 | — | 7 |
| 0042-027 | Stair Platform Rest | 6 | — | 8 |
| 0042-035 | Stair Platform Rest | 7 | — | 8.5 |
| 0042-047 | Open Frame Safety Guard | — | — | 5 |
| 0042-093 | Inside Handrail | — | — | 15 |
| 0042-094 | Outside Handrail | — | — | 28 |
| 0042-175 | Inside Handrail (top section only) | — | — | 14 |
| 0042-185 | Outside Handrail (top section only) | — | — | 25 |
| 0042-221 | 24" W Stair Section - 6'5" | — | — | 74 |
| 0042-222 | 24" W Stair Section - 6'6" | — | — | 74 |
| 0042-223 | 24" W Stair Section - 6'7" | — | — | 74 |
| 0044-052 | Intermediate Catwalk - 28" W x 7' L with Guard Rail | — | — | 91 |
| 0044-054 | Hinged Platform - 28" W x 7' L - Expanded Steel | — | — | 60 |
| 0044-235 | Expanded Steel Catwalk - 28" W x 7' L | — | 75 psf | 56 |
